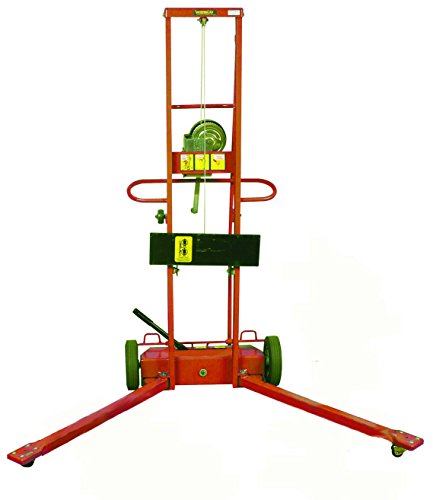

Drum Lifter- Wesco Patented Gator-Grip lifts drums from top for greater safety. No need for the operator to touch the drum to raise transport and lower drum. Works with most standard rim 3055 and 85 gallon steel fiber and poly drums.
Material of Construction: Steel.
Made in USA.
Front Wheel Size: 10".
Front Wheel Type: Solid Rubber.
Caster Size: 2".
Caster Type: Swivel casters.
Options: 261161 261162 261163.
Raised Height: 62".
Lowered Height: 4".
Powered/Manual: Manual.
Agency App/Cert: None.
Cubic Ft: 64.18.
Adjustable Width Forks(6" to 19.5") useful for small pallets skids etc. Slip-On Platform (27.5" x 21") installs over forks. Ideal for transporting cartons or irregularly shaped objects. 3-angle outrigger adjusts with lever no tools needed.
Standard setting outriggers are straight out.
42 degrees allows drums to be lifted or lowered to ground.
75 degrees allows cargo to be placed on or removed from the corner of a pallet.
Outrigger angle can be changed even when fully loaded.
High-gear ratio winch permits easy lifting with minimal effort.
Convenient foot-operated wheel lock for increased safety.
Mid-frame loading wheels allow unit to be tilted into pick-up truck bed with minimal effort.
Spring-loaded quick-connect winch handle may be reversed for storage.
Accepts 3 attachments. No tools necessary to install or remove.
750 lbs capacity.
Patent pending design.
Frame and attachments sold separately.
Handle Type: Continuous.
Floor lock: Yes.
Capacity: 750 Lb.
Dimensions: 30" W x 70.75" H x 52.25" D.
Warranty: 1 Year.
Price: 1999.11
|
